2-way passive loudspeaker, 250W AES, 125dB SPL
Components:

• 10'' woofer with 2.6'' voice coil
• HF Compression driver with 1'' throat, titanium diaphragm and 1.3'' voice coil
• 80°x60° (HxV) constant-directivity rotatable waveguide
• Impedance: 8Ohm
• Recommended amplifier: up to 500W RMS/8Ohm
• Sensitivity: 95dB @1W/1m
• Frequency response: 70-18000Hz (±3dB)
• Passive filter with HF driver protection

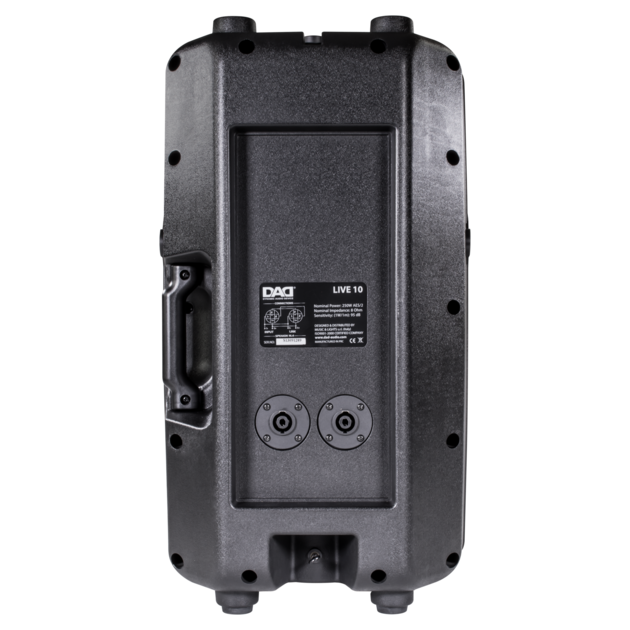

Connections:

• 4-pole Speakon in/out

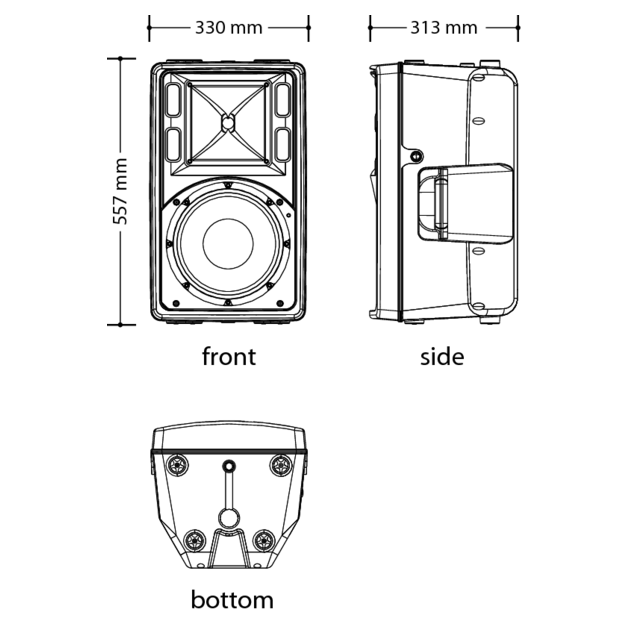

Cabinet construction:

• Symmetrical trapezoidal profile with 60° angle
• Polypropylene enclosure, designed for stage-monitor application
• Matte black finishing
• 5 fastening points (M8 type) for suspension
• 35mm pole-mount adapter for stands

Applications:

• Reproduction of voice and music for live and recorded performances
• For portable PA systems, mobile DJ sets and voice/multimedia applications
• For sound installations in small to medium-sized environments
• Mid-high unit in multi-amplified sound systems combined with DAD subwoofers

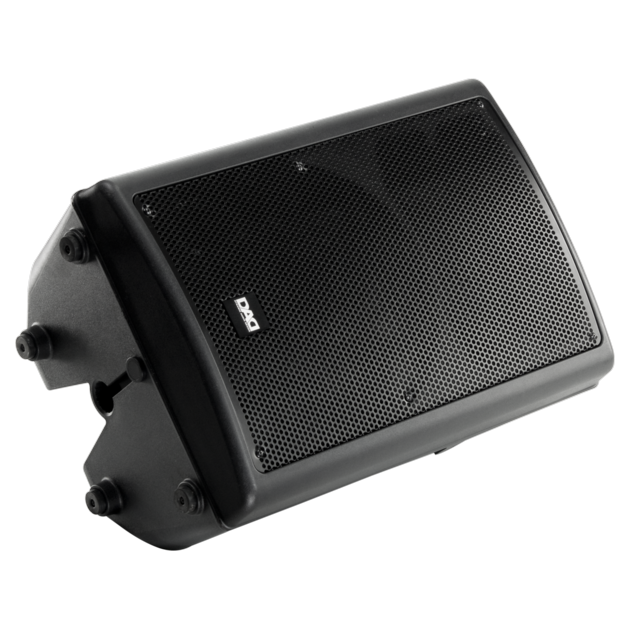

• Stage-monitor
