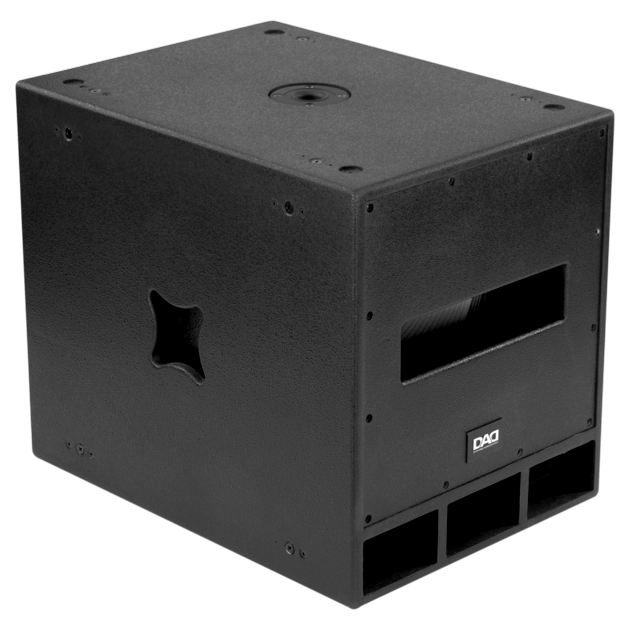

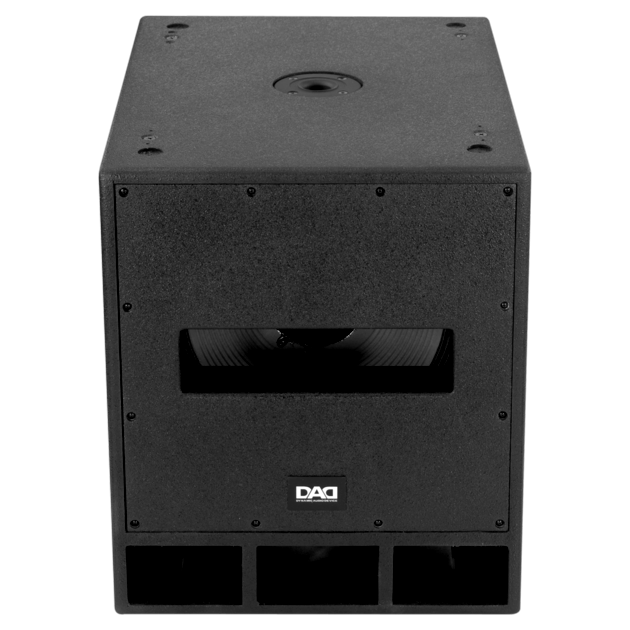

Double-reflex passive subwoofer, 500W AES, 130dB SPL
Components:
Long-excursion 15'' woofer with 4'' voice coil
Impedance: 8Ohm
Recommended amplifier: up to 1000W RMS/8Ohm
Sensitivity: 96dB @1W/1m
Frequency response: 45-150Hz (±3dB)
External LPF recommended range: 80Hz to 150Hz

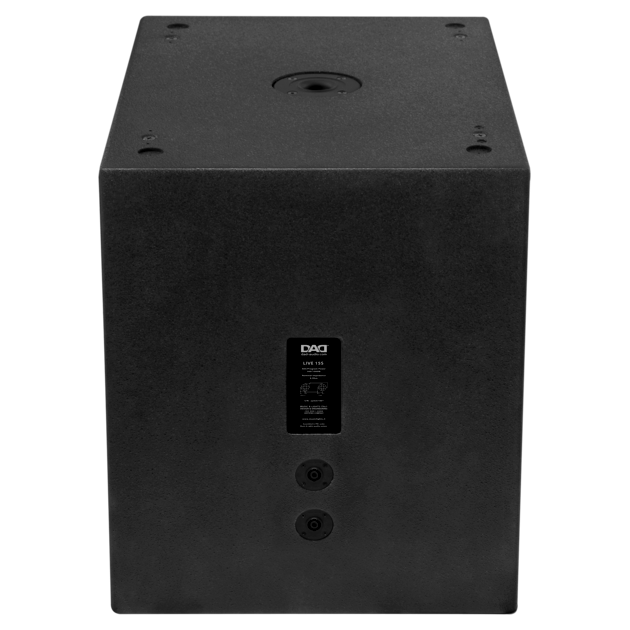

Connections:
4-pole Speakon in/out

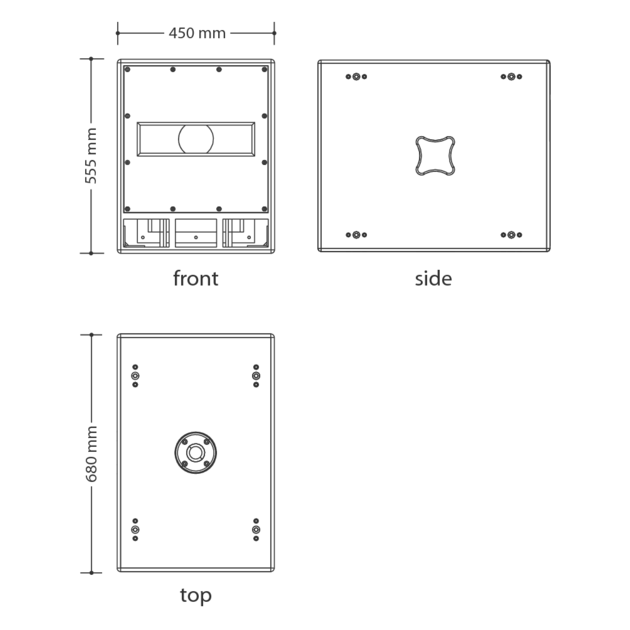

Cabinet construction:
18mm multilayer birch plywood
35mm pole-mount adapter for stands
16 fastening points (M10 type) for suspension
Applications:
Subwoofer for reinforcement of low frequencies in live and recorded performance
For sound installations in indoor/outdoor environments requiring dynamics and high sound pressure
Sound reinforcement in permanents installations or mobile sets
Subwoofer section of multi-amplified sound systems, combined with DAD Live mid-high loudspeakers
