Double-reflex active subwoofer, 600W AB-class amplifier, 130dB SPL
Components:
- 15'' long-excursion woofer with 4'' voice coil
Electronics:
- 600W AB-class bi-amp system
- Analogue processor with crossover, equalization and limiter

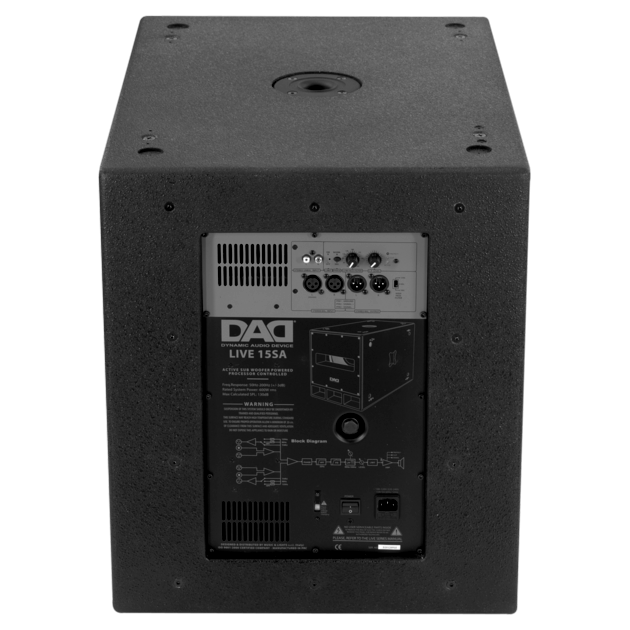

- User control panel: 2 input channels (1 balanced + 1 unbalanced), LPF adjustment (80-165Hz), balanced output with HPF adjustment (3 options: THRU, 80Hz, 125Hz), master volume, signal, limiter and protection indicators
- Phase reverse switch.

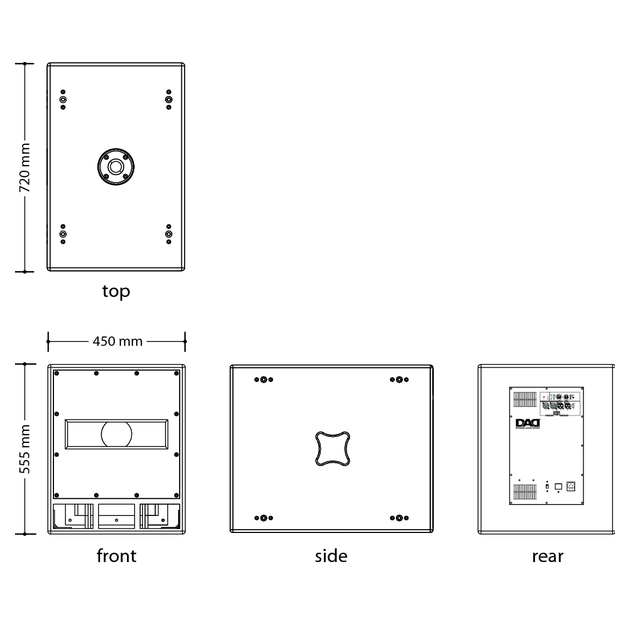

Cabinet construction:
- 18mm multilayer birch plywood
- 35mm pole-mount adapter for stands, side-handles for transportation
- 16 fastening points (M10 type) for suspension
Connections:
- XLR in/out and RCA input connections; AC VDE in
Applications:
- Subwoofer for reinforcement of low frequencies in live and recorded performance
- Subwoofer section of multi-amplified sound systems, combined with DAD Live mid-high loudspeakers
- Sound reinforcement in permanents installations or mobile sets
- Subwoofer section of multi-amplified sound systems, combined with DAD Live full-range loudspeakers
