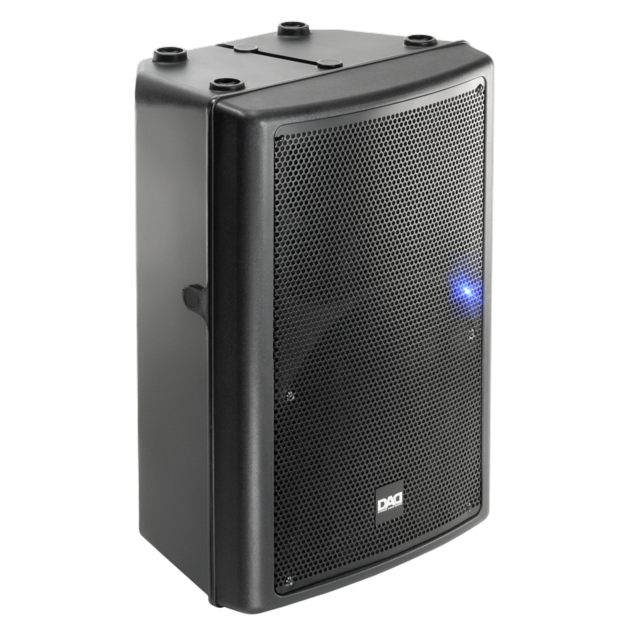

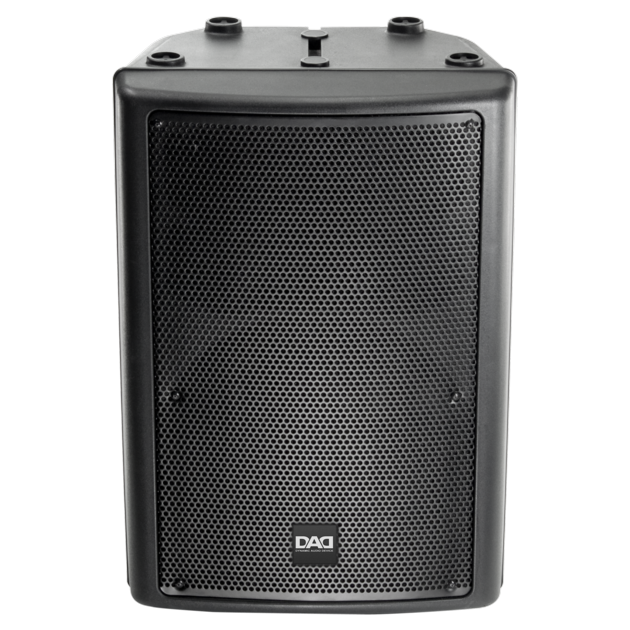

Active loudspeaker, AB-class bi-amp, 2-way 250W+50W, 122dB SPL
Components:
10'' woofer with 2.6'' voice coil
HF compression driver with 1'' throat, titanium diaphragm and 1.3'' voice coil
80°x60° (HxV) constant-directivity rotatable waveguide
Electronics:
300W (250W LF + 50W HF) AB-class bi-amp system
Analogue processor with crossover function, equalization, phase alignment

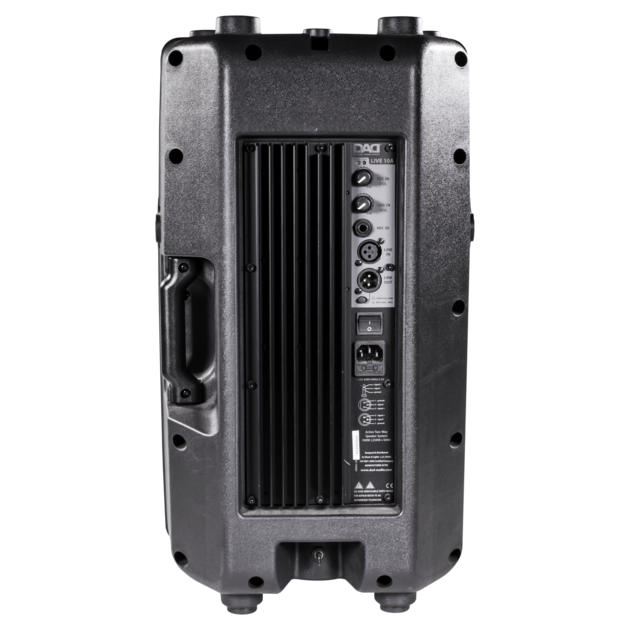

User control panel: 2 input channels (Mic + Line) with independent volume adjustment, 1 balanced mix output, signal and clip indicators
Cabinet construction:

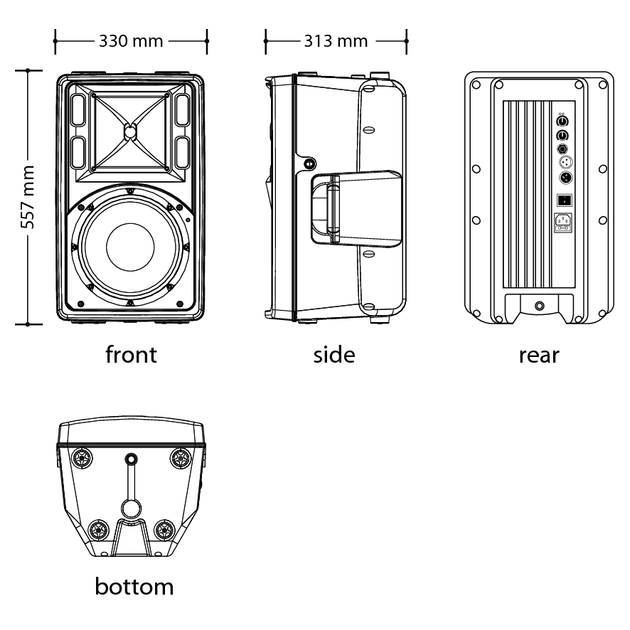

Symmetrical trapezoidal profile with 60° angle
Polypropylene enclosure, designed for stage-monitor application
Matte black finishing
5 fastening points (M8 type) for suspension
35mm pole-mount adapter for stands, side-handle for transportation
Connections:
XLR in/out and Jack balanced input connections; AC VDE in
Applications:
Reproduction of voice and music for live and recorded performances
For portable PA systems, mobile DJ sets and voice/multimedia applications
For sound installations in small to medium-sized environments
Mid-high unit in multi-amplified sound systems combined with DAD subwoofers

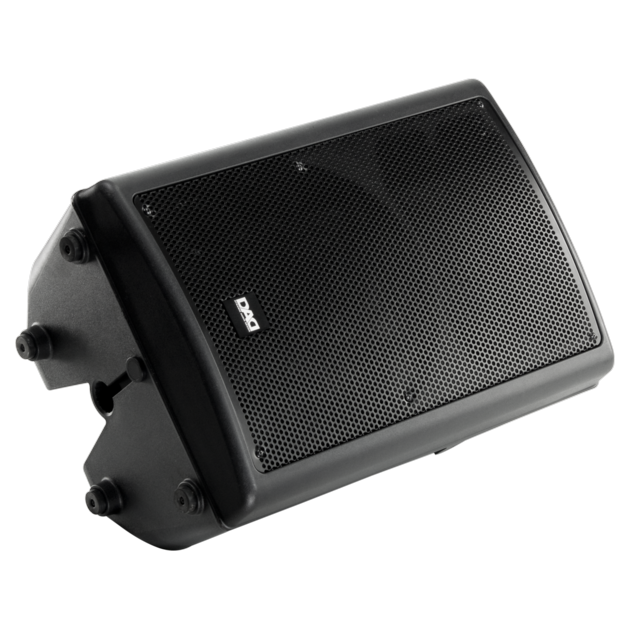

Stage-monitor
