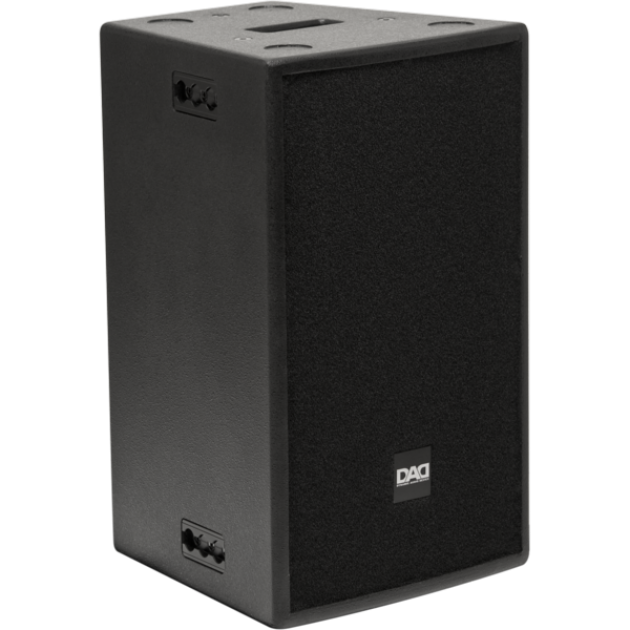

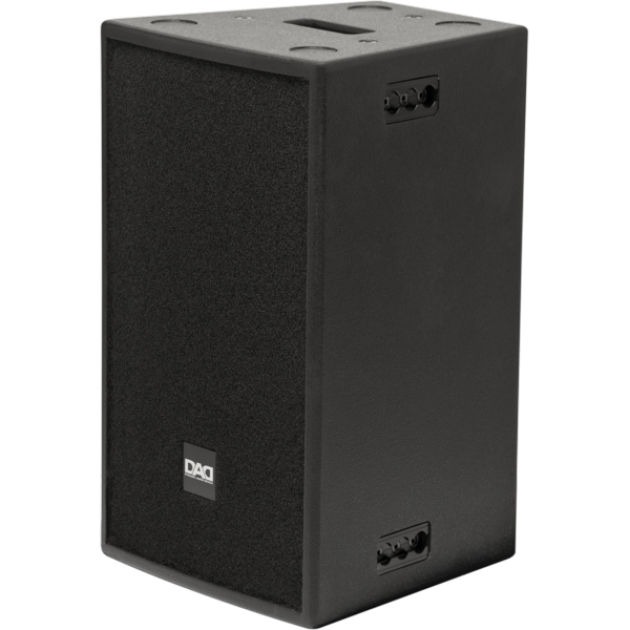

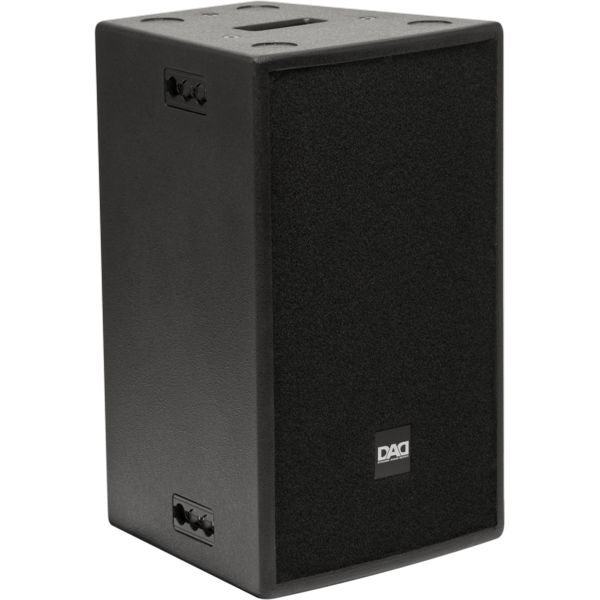

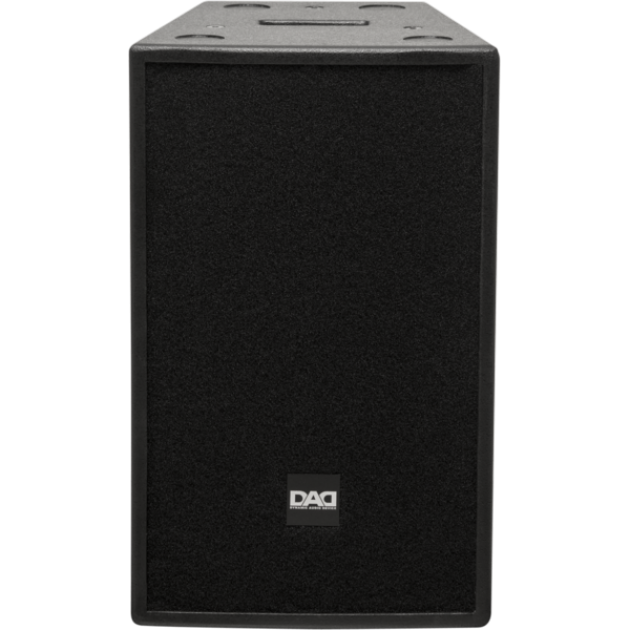

Active loudspeaker, D+AB-class bi-amp, 2-way 350W+70W, 124dB SPL
Components:
- 10'' woofer with 2.6'' voice coil
- HF compression driver with 1'' throat, polyimide diaphragm and 1.7'' voice coil
- 90°x70° (HxV) constant-directivity waveguide
Electronics:
- 420W (350W LF + 70W HF) D+AB-class bi-amp system, with switching mode power supply
- Analogue processor with crossover function, phase alignment, LF/HF limiter

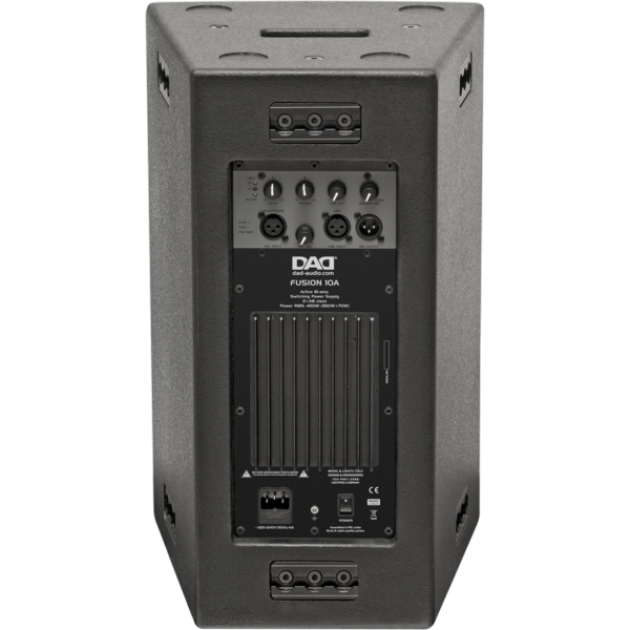

- User control panel: Mic/Line in channels with level adjustment, balanced mix output, LF/HF equalization, master volume, limiter indicators

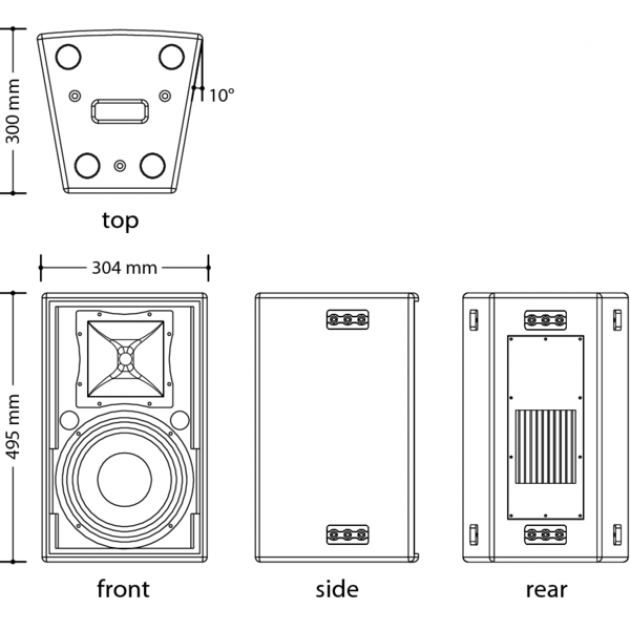

Cabinet construction:
- Trapezoidal profile with 10° angle
- 15mm multilayer birch plywood
- Fast-locking ''fly-track'' suspension system or M8 eye bolt over 6 anchoring points
- 35mm pole-mount adapter for stands
Connections:
- XLR in/out connections; AC VDE in
Applications:
- Reproduction of voice and music for live and recorded performances
- For sound installations in environments requiring dynamics and sound pressure
- Installed into theatres and congress halls
- Mid-high unit in multi-amplified sound systems combined with DAD subwoofers
