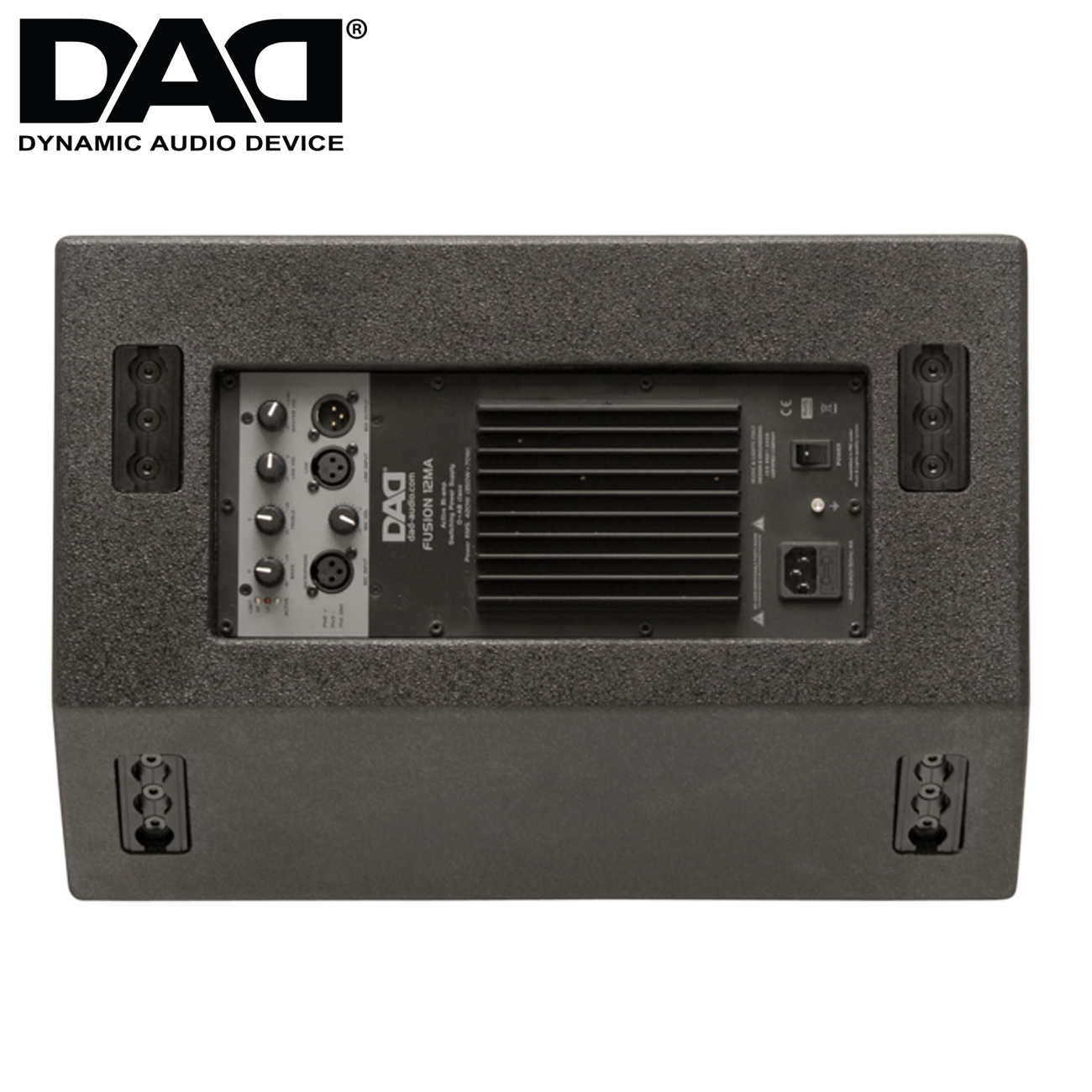

Active stage-monitor, coaxial design, D+AB-class bi-amp, 2-way 350W+70W, 128dB SPL
Components:

• 12'' woofer with 2.6'' voice coil
• HF Compression driver with 1'' throat, titanium diaphragm and 1.3'' voice coil
• 80°x80° (HxV) conical waveguide

Electronics:

• 420W (350W LF + 70W HF) D+AB-class bi-amp system, with switching mode power supply
• Analogue processor with crossover function, phase alignment, LF/HF limiter
• User control panel: Mic/Line in channels with level adjustment, balanced mix output, LF/HF equalization, master volume, limiter indicators

Cabinet construction:

• Trapezoidal profile, 40° enclosure angle
• 15mm multilayer birch plywood
• Fast-locking ''fly-track'' suspension system or M8 eye bolt over 6 anchoring points
• 35mm pole-mount adapter for stands

Connections:

• XLR in/out connections; AC VDE in

Applications:

• Stage monitor

• Reproduction of voice and music for live and recorded performances

• For sound installations in environments requiring dynamics and high sound pressure

• Installed into theatres and congress halls

• Mid-high unit in multi-amplified sound systems combined with DAD subwoofer
