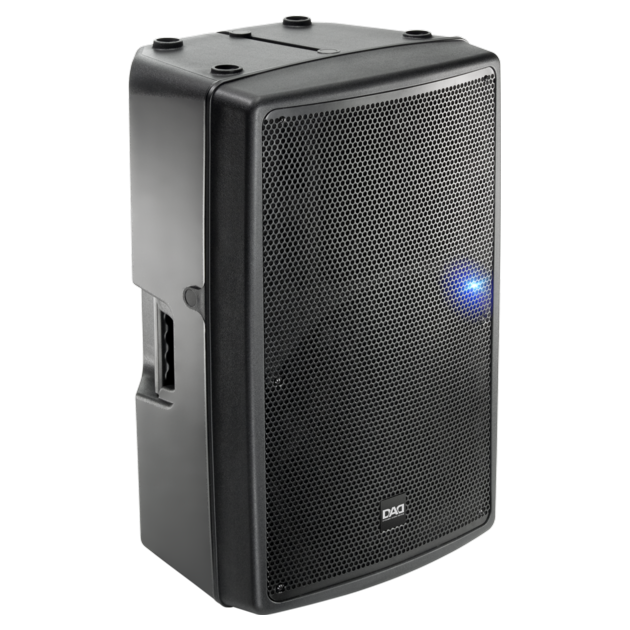

Active loudspeaker, AB-class bi-amp, 2-way 380W+70W, 124dB SPL
Components:

• 15'' woofer with 3'' voice coil
• HF compression driver with 1'' throat, titanium diaphragm and 1.7'' voice coil
• 80°x60° (HxV) constant-directivity rotatable waveguide

Electronics:

• 450W (380W LF + 70W HF) AB-class bi-amp system
• Analogue processor with crossover function, equalization, phase alignment

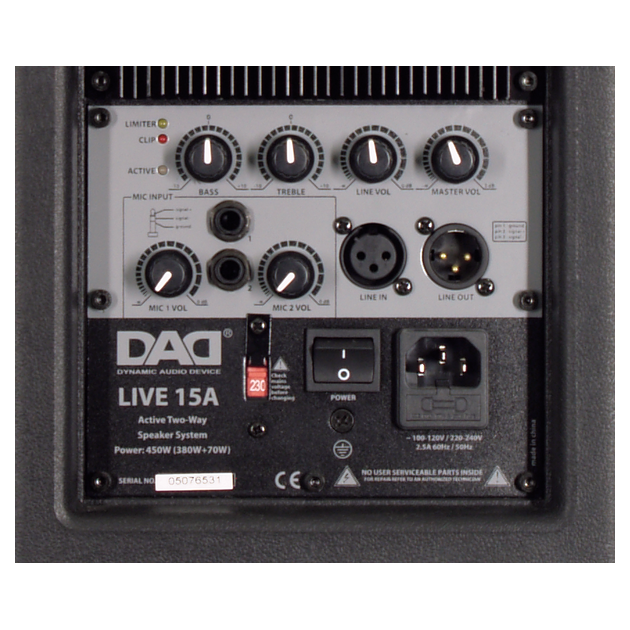

• User control panel: 3 input channels (2 Mic + 1 Line) with independent volume adjustment, 1 balanced mix output, LF/HF equalization, master volume, signal, limiter and protection indicators

Cabinet construction:

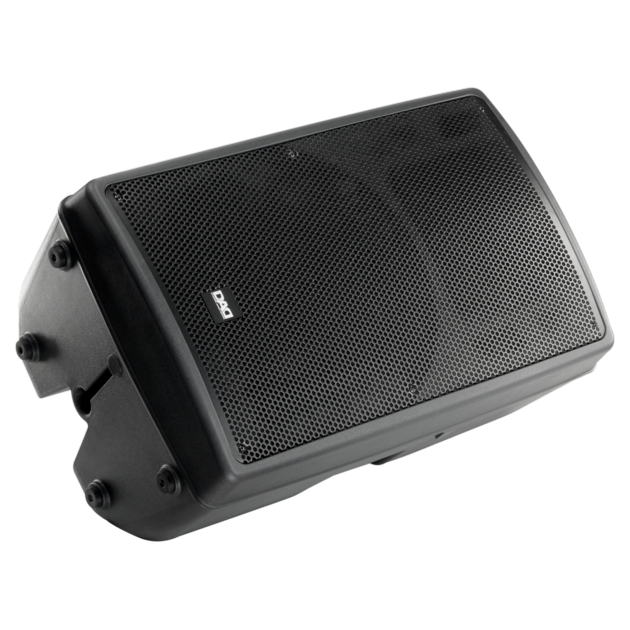

• Symmetrical trapezoidal profile with 45° angle
• Polypropylene enclosure, designed for stage-monitor application
• Matte black finishing

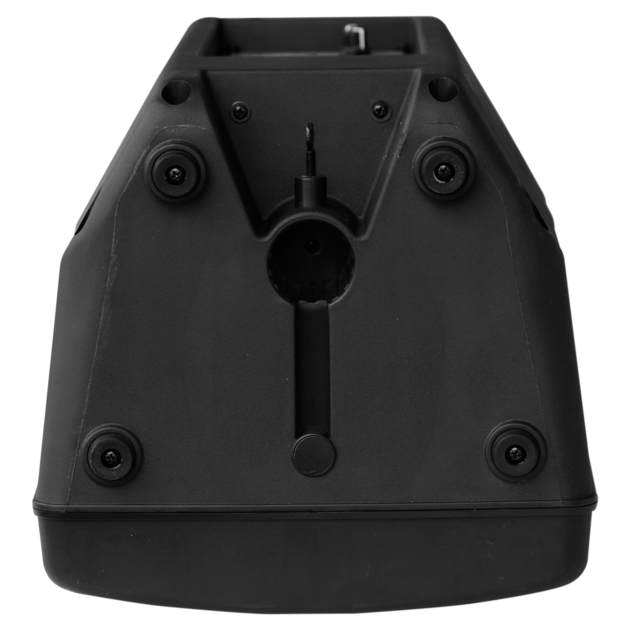

• 5 fastening points (M8 type) for suspension
• 35mm pole-mount adapter for stands, side-handles for transportation

Connections:

• XLR in/out and Jack balanced input connections; AC VDE in

Applications:

• Reproduction of voice and music for live and recorded performances
• For indoor/outdoor sound installations where quality and sound pressure are required
• For portable PA systems, mobile DJ sets and voice/multimedia applications
• Permanent installation in theaters and congress halls
• Mid-high unit in multi-amplified sound systems combined with DAD subwoofers
• Stage-monitor
