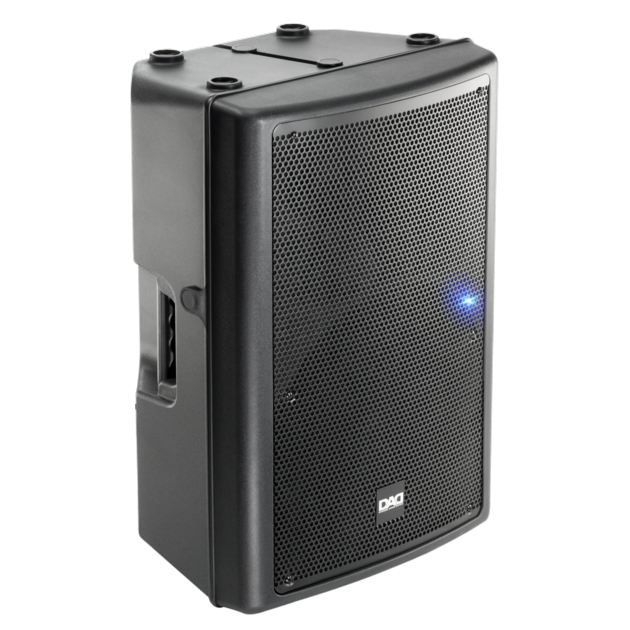

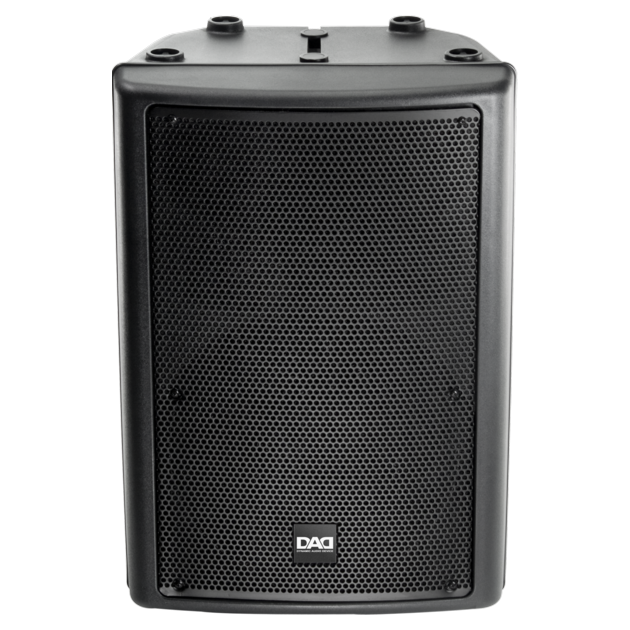

Active loudspeaker, AB-class bi-amp, 2-way 330W+70W, 124dB SPL
Components:
12'' woofer with 3'' voice coil
HF compression driver with 1'' throat, titanium diaphragm and 1.7'' voice coil
80°x60° (HxV) constant-directivity rotatable waveguide
Electronics:
400W (330W LF + 70W HF) AB-class bi-amp system
Analogue processor with crossover function, equalization, phase alignment, LF/HF limiter
User control panel: 3 input channels (2 Mic + 1 Line) with independent volume adjustment, 1 balanced mix output, LF/HF equalization, master volume, signal, limiter and protection indicators
Cabinet construction:
Symmetrical trapezoidal profile with 45° angle
Polypropylene enclosure, designed for stage-monitor application
Matte black finishing
5 fastening points (M8 type) for suspension
35mm pole-mount adapter for stands, side-handle for transportation
Connections:
XLR in/out and Jack balanced input connections; AC VDE in
Applications:
Reproduction of voice and music for live and recorded performances
For indoor/outdoor sound installations where quality and sound pressure are required
For portable PA systems, mobile DJ sets and voice/multimedia applications
Permanent installation in theaters and congress halls
Mid-high unit in multi-amplified sound systems combined with DAD subwoofers

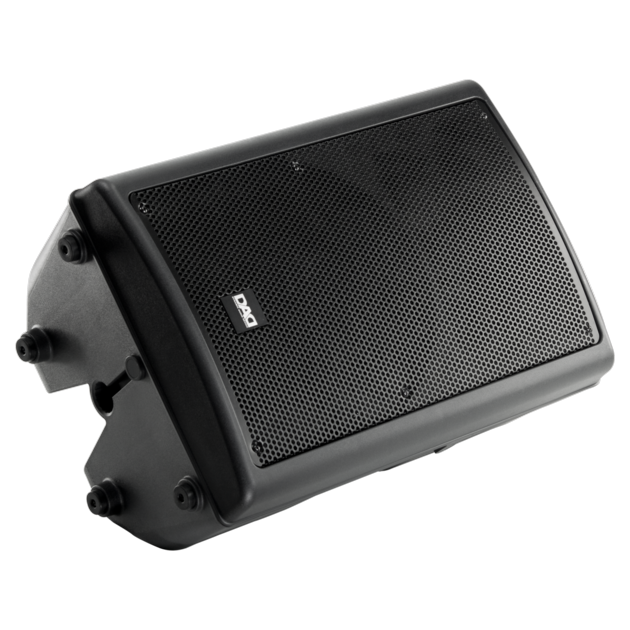

Stage-monitor
