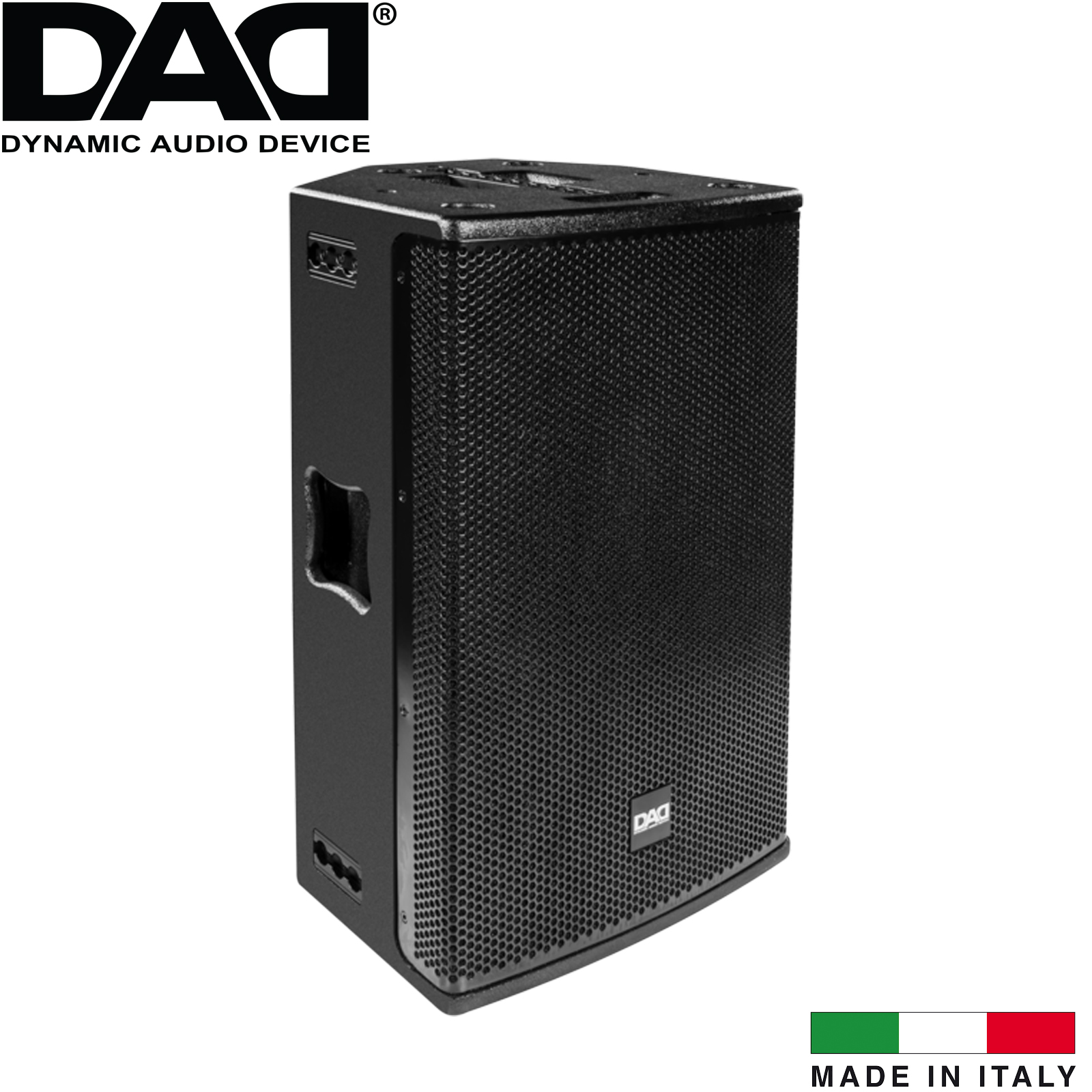

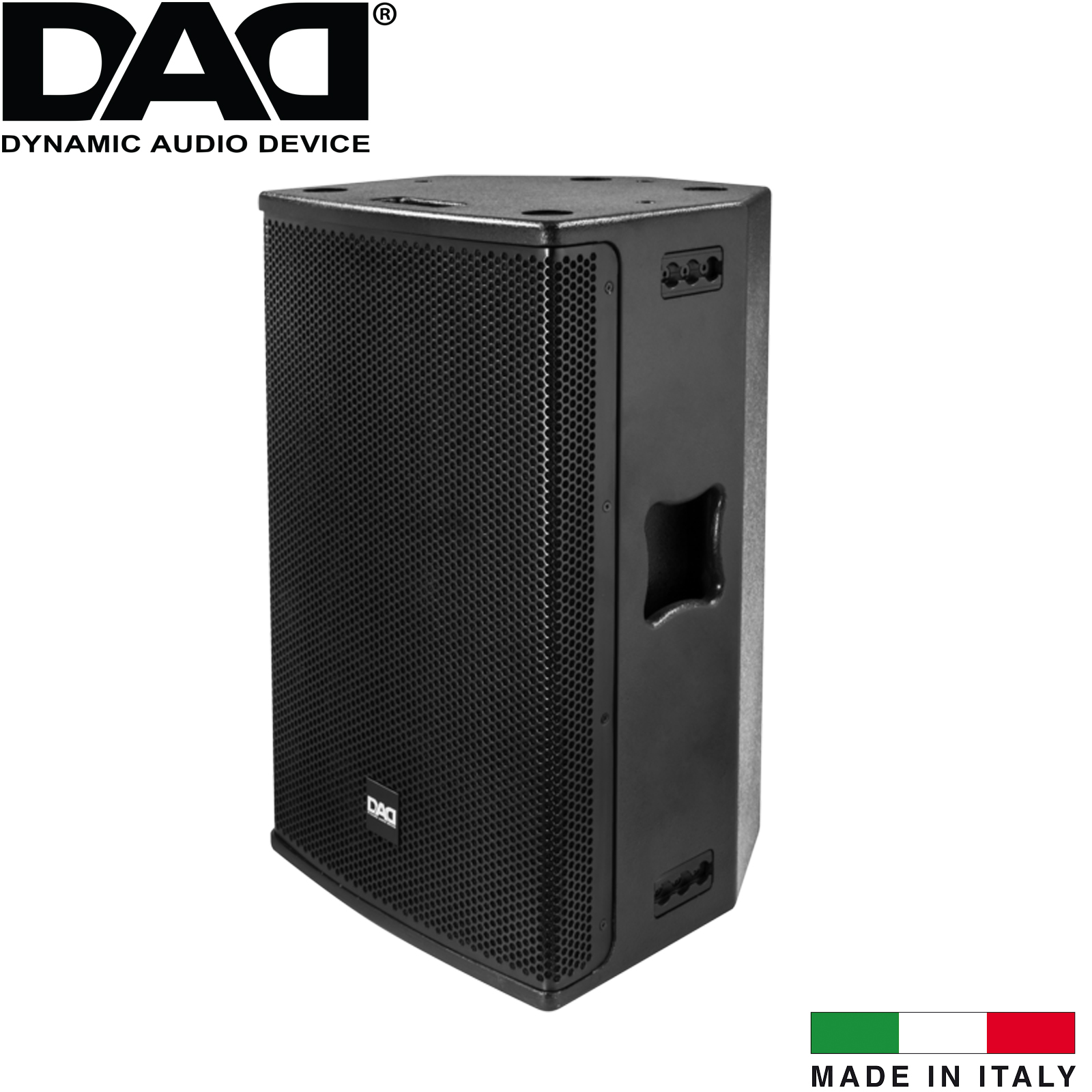

2-way passive loudspeaker, 500W AES, 129dB SPL
Components:
- 12'' Nd woofer with 3'' voice coil
- HF compression driver with 1.4'' throat, titanium diaphragm and 3'' voice coil
- 80°x50° (HxV) constant-directivity waveguide
- Impedance: 8Ohm
- Recommended amplifier: up to 1000W RMS/8Ohm
- Sensitivity: 99dB @1W/1m
- Frequency response: 80-18000Hz (±3dB)
- Crossover frequency: 1200Hz
- External HPF recommended range: 90Hz to 150Hz
- Passive filter with HF driver protection
Connections:

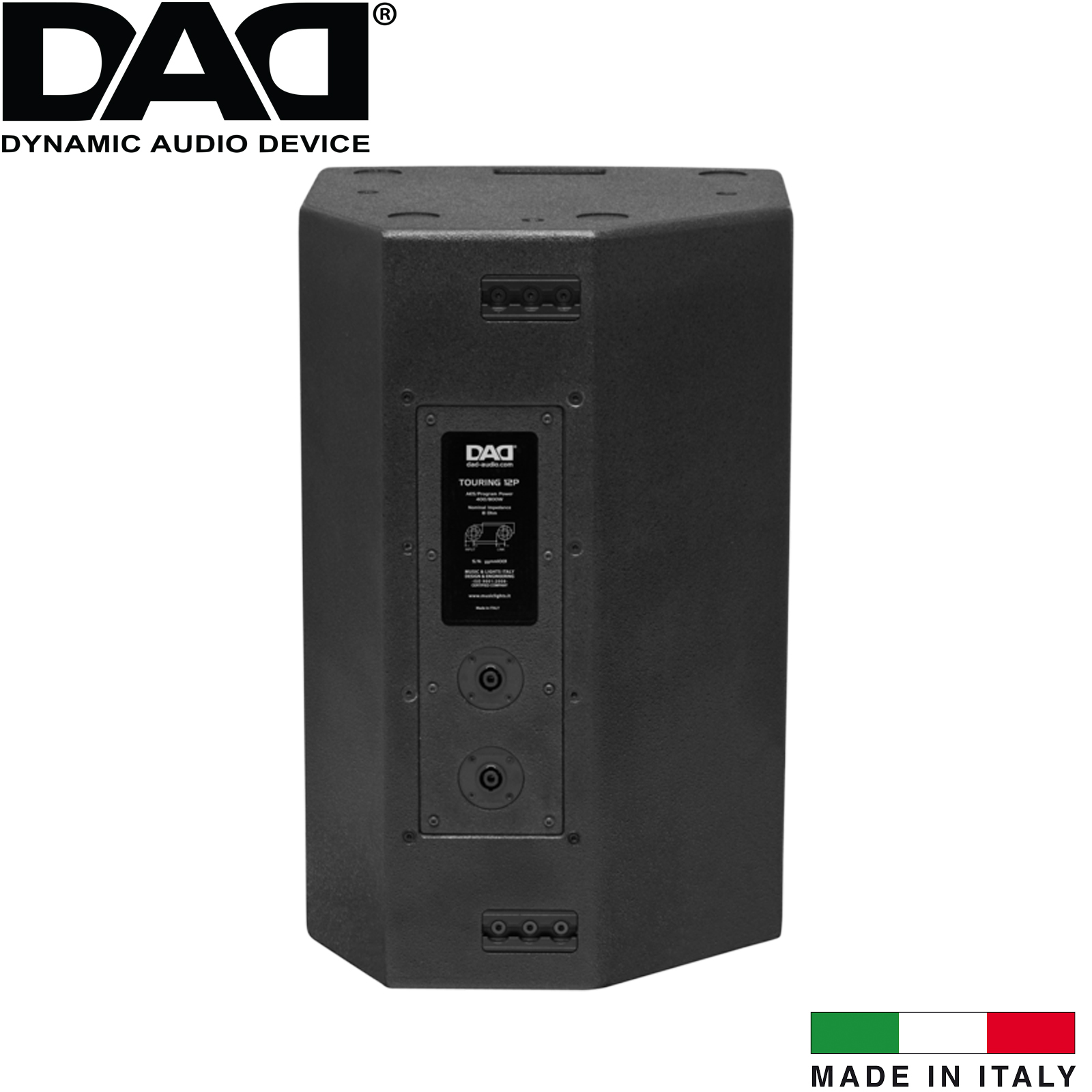

- Neutrik NL-4 Speakon in/out
Cabinet construction:
- Asymmetrical trapezoidal profile, dual-angle (30°/50°) enclosure
- 18mm multilayer birch plywood
- Fast-locking ''fly-track'' suspension system or M8 eye bolt over 6 anchoring points
- 35mm pole-mount adapter for stands
Applications:
- Excellent clarity in reproduction of voice and music for live and recorded performances
- For sound installations in environments requiring dynamics and high sound pressure
- Installed into theatres and congress halls owing to excellent acoustic performance
- Mid-high unit in multi-amplified sound systems combined with DAD subwoofer

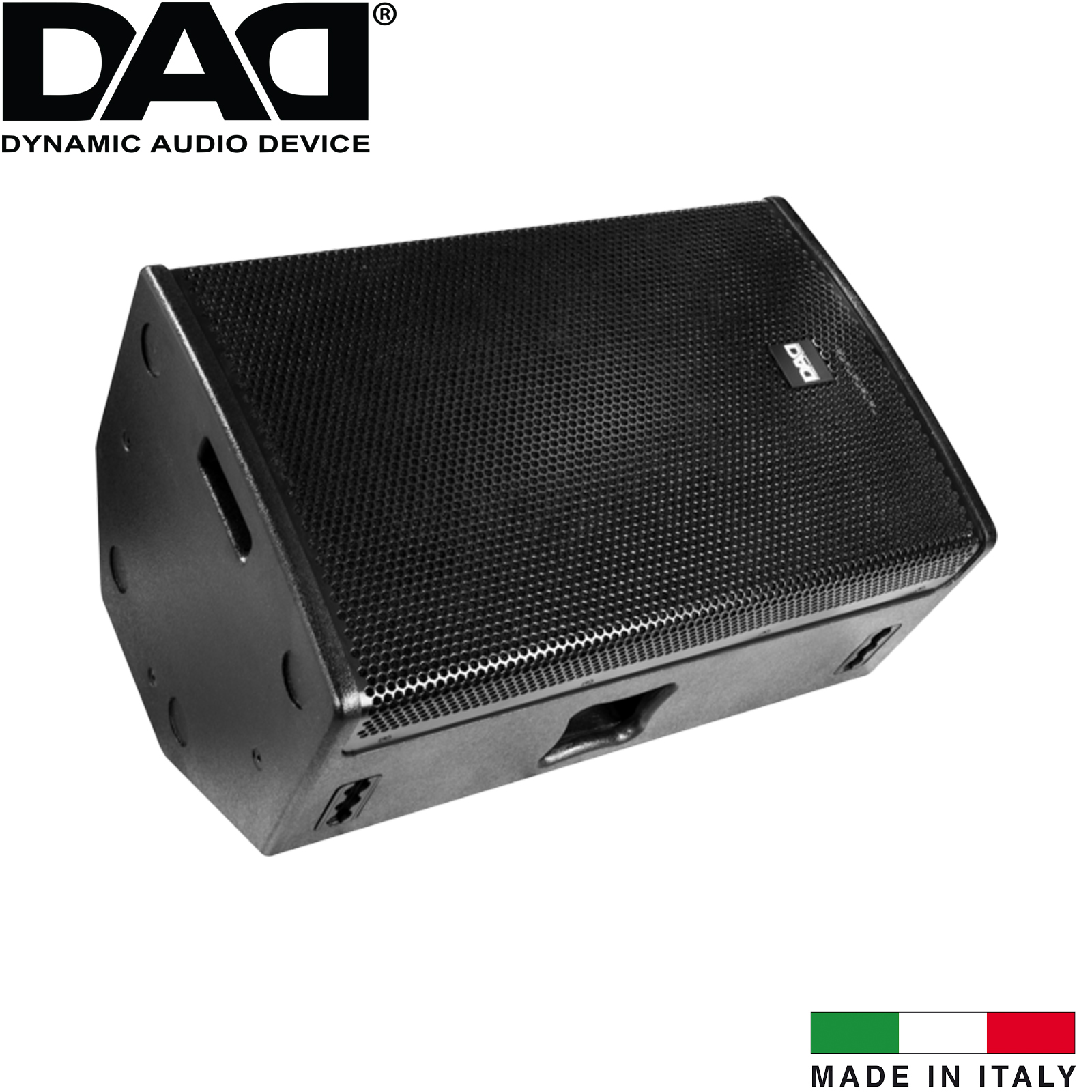

- Stage-monitor
