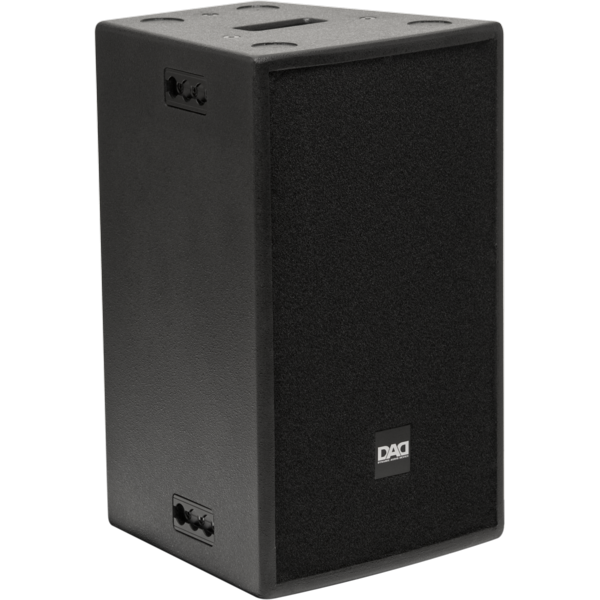

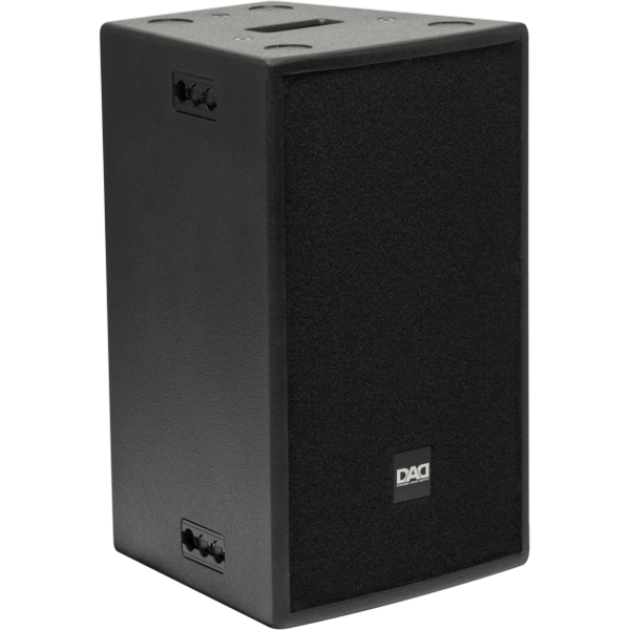

2-way passive loudspeaker, 250W AES, 124dB SPL
Components:
10'' woofer with 2.6'' voice coil
HF Compression driver with 1'' throat, polyimide diaphragm and 1.7'' voice coil
90°x70° (HxV) constant-directivity waveguide
Impedance: 8Ohm
Recommended amplifier: up to 500W RMS/8Ohm
Sensitivity: 94dB @1W/1m
Frequency response: 70-18000Hz (±3dB)
Passive filter with HF driver protection
Connections:
4-pole Speakon in/out
Cabinet construction:
Trapezoidal profile with 10° angle
15mm multilayer birch plywood
Fast-locking ''fly-track'' suspension system over 6 anchoring points
35mm pole-mount adapter for stands
Applications:
Reproduction of voice and music for live and recorded performances
For sound installations in environments requiring dynamics and sound pressure
Installed into theatres and congress halls
Mid-high unit in multi-amplified sound systems combined with DAD subwoofers
