Passive stage-monitor, coaxial design, 2-way 350W AES, 130dB SPL
Components:

• 12'' Nd woofer with 3'' voice coil
• HF Nd compression driver with 1.4'' throat, titanium diaphragm and 3'' voice coil
• 60°x40° (HxV) constant-directivity elliptical waveguide
• Impedance: 8Ohm
• Recommended amplifier: up to 700W RMS/8Ohm
• Sensitivity: 99dB @1W/1m
• Frequency response: 80-18000Hz (±3dB)
• Crossover frequency: 1400Hz
• External HPF recommended range: 80Hz to 150Hz
• Passive filter with HF driver protection

Connections:

• Neutrik NL-4 Speakon in/out

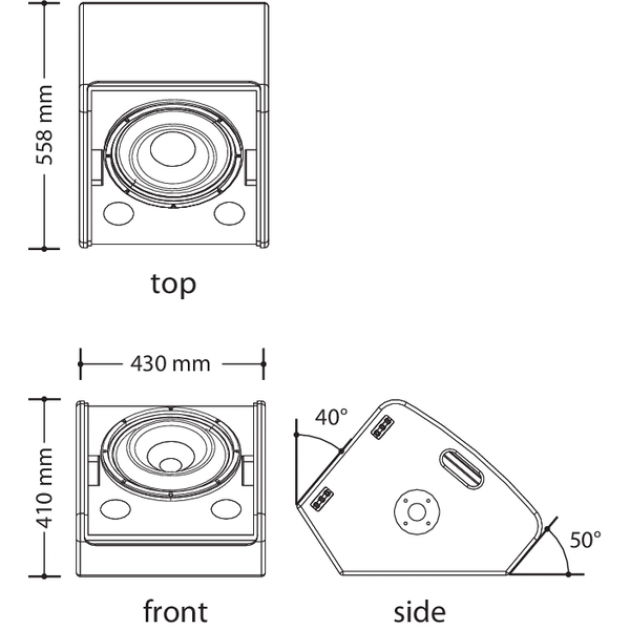

Cabinet construction:

• Trapezoidal profile, 50° enclosure angle
• 18mm multilayer birch plywood
• Fast-locking ''fly-track'' suspension system or M8 eye bolt over 4 anchoring points
• 35mm pole-mount adapter for stands

Applications:

• Excellent clarity in monitoring of voice and music for live and recorded performances
• For sound installations in environments requiring dynamics and high sound pressure
• Installed into theatres and congress halls owing to excellent acoustic performance
• Mid-high unit in multi-amplified sound systems combined with DAD subwoofer
