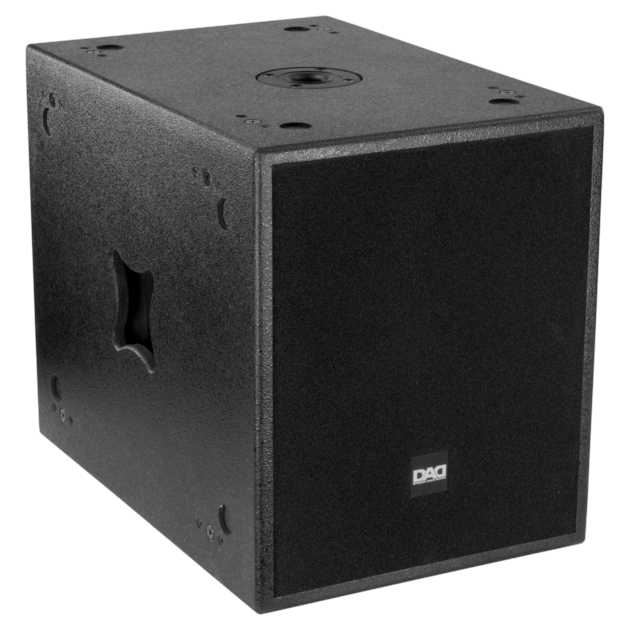

Bass-reflex active subwoofer, 600W AB-class amplifier, 126dB SPL
Components:
- 12'' long-excursion woofer with 3'' voice coil
Electronics:
- 600W AB-class bi-amp system
- Analogue processor with crossover, equalization and limiter

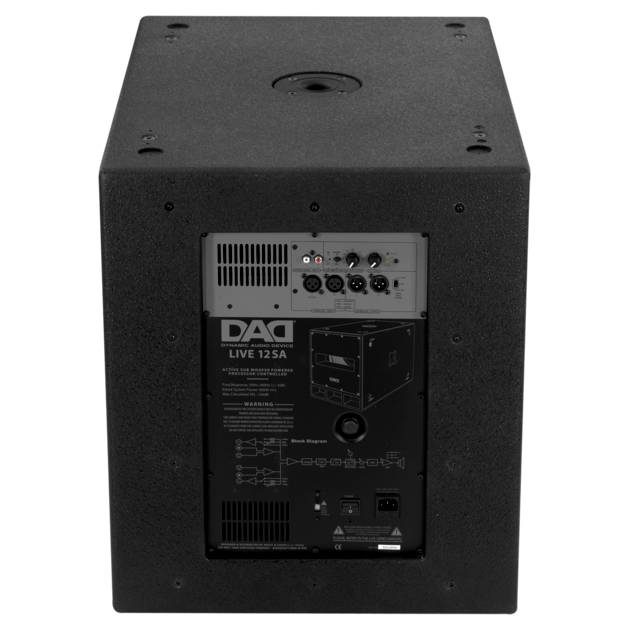

- User control panel: 2 input channels (1 balanced + 1 unbalanced), LPF adjustment (80-165Hz), balanced output with HPF adjustment (3 options: THRU, 80Hz, 125Hz), master volume, signal, limiter and protection indicators
- Phase reverse switch
Cabinet construction:
- 18mm multilayer birch plywood
- 35mm pole-mount adapter for stands
- 16 fastening points (M10 type) for suspension
Connections:
- XLR in/out and RCA input connections; AC VDE in
Applications:
- Subwoofer for reinforcement of low frequencies in live and recorded performance
- Subwoofer section of multi-amplified sound systems, combined with DAD Live mid-high loudspeakers
- Sound reinforcement in permanents installations or mobile sets
- Subwoofer section of multi-amplified sound systems, combined with DAD Live full-range loudspeakers
| Technical Data | LIVE12SA |
| System type | Active - bass reflex |
| Built-in amp (W/RMS) | 600W |
| AES / Program Power | |
| Recommended amp | |
| Input impedance | 10KOhm |
| Frequency response | 50-200Hz (±3dB) |
| Low frequency | 12” woofer / 3” coil |
| Input sensitivity | -2dBu(0,6Vrms)adjustable |
| Max SPL-Cont./Peak | 118/126dB (Free Field) |
| Xover Freq(LPF) | 80 - 165Hz adjustable |
| Xover Freq(HPF) out | Through / 80 / 125Hz |
| User controls | master,LPF,HPF,phase,limit |
| Protection | fast limiter, temp |
| Connections | XLR in/out/RCA ; VDE in |
| Weight | 32kg |
| Dimensions (WxHxD) | 400x480x590mm |
