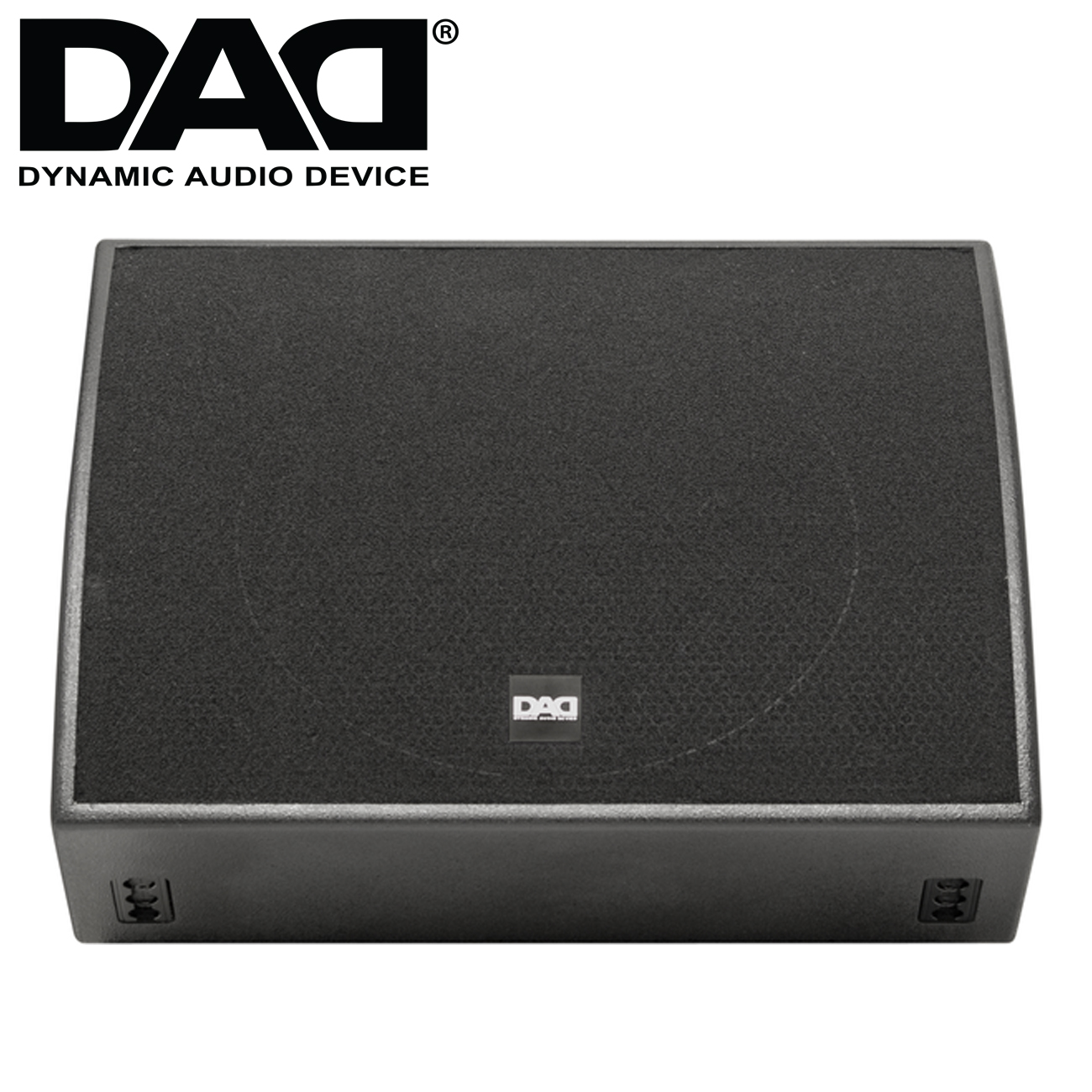

Passive stage-monitor, coaxial design, 2-way 300W AES, 128dB SPL
Components:

• 15'' woofer with 3'' voice coil
• HF Compression driver with 1'' throat, titanium diaphragm and 1.7'' voice coil
• 90°x90° (HxV) conical waveguide
• Impedance: 8Ohm
• Recommended amplifier: up to 600W RMS/8Ohm
• Sensitivity: 98dB @1W/1m
• Frequency response: 55-18000Hz (±3dB)
• Passive filter with HF driver protection

Connections:

• 4-pole Speakon in/out

Cabinet construction:

• Trapezoidal profile, 40° enclosure angle
• 15mm multilayer birch plywood
• Fast-locking ''fly-track'' suspension system or M8 eye bolt over 6 anchoring points
• 35mm pole-mount adapter for stands

Applications:

• Stage monitor
• Reproduction of voice and music for live and recorded performances
• For sound installations in environments requiring dynamics and high sound pressure
• Installed into theatres and congress halls
• Mid-high unit in multi-amplified sound systems combined with DAD subwoofer
